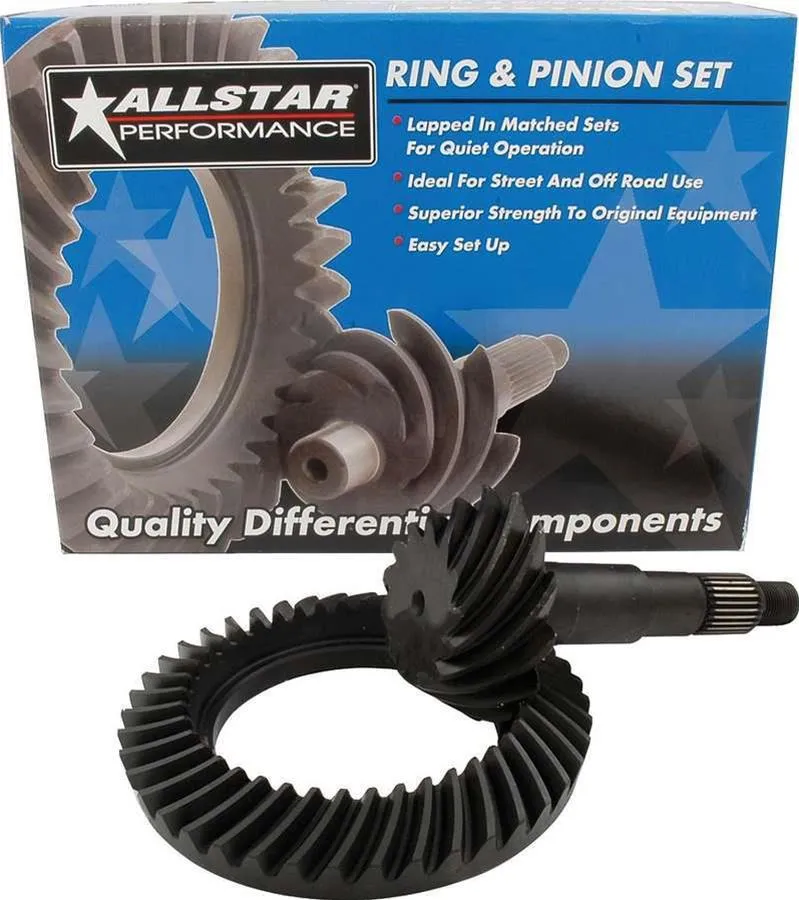

Brand: Allstar Performance
Manufacturer's Part Number: ALL70113
Part Type: Ring and Pinion Gears
Product Line: Allstar Performance Ring and Pinion Gear Sets
Automotive Fittings Part Number: AAF-ALL70113
UPC: 848238038071
Differential Case Design Type: GM 7.5 in.
Ring and Pinion Ratio: 3.42:1
Cover Bolts: 10
Ring Gear Bolts: 10
Pinion Spline Count: 27
Carrier Series: 2
Ring Gear Rotation: Standard
Ring Gear Teeth: 41
Pinion Gear Teeth: 12
Ring Gear Diameter (in.): 7.500 in.
Pinion Shaft Diameter (in.): 1.438 in.
Installation Kit Included: No
Cover Gasket Included: No
Pinion Shims Included: No
Carrier Shims Included: No
Crush Sleeve Included: No
Pinion Seal Included: No
Pinion Nut Included: No
Ring Gear Bolts Included: No
Head Bearing Included: No
Tail Bearing Included: No
Carrier Bearings Included: No
Axle Seals Included: No
Axle Bearings Included: No
Differential Cover Included: No
Differential Oil Included: No
Friction Modifier Included: No
Installation DVD Included: No
Quantity: Sold as a set.
Notes: Set includes thick ring gear for use with 3.08 and lower ratio carriers.
Description:
Allstar Performance ring and pinion gear sets are engineered, manufactured, and tested for maximum performance. The high-quality differential components are suitable for race, street, and off-road use. Their superior quality is the result of years of development, outstanding design, and state-of-the-art machining methods. Allstar ring and pinion sets are available in many different ratios to fit a variety of differentials. Plus, they're perfectly matched to provide you with reliable and quiet operation.
